Transformers?

DL progress. 2015 was a long time ago, however, and DL has seen a paradigm shift in sequence modeling away from char-RNNs to CNNs and attention-based Transformer models—most famously, GPT-2. Google Magenta’s Music Transformer (Huang et al 2018) with style control & OpenAI’s Sparse Transformer-based MuseNet have both demonstrated excellent results in music composition at various timescales/formats, and interesting features like mixing genres.

GPT-2: a perfect match. While messing around with GPT-2-based preference learning in late October 2019, I became curious if folk-RNN could be improved by simply throwing one of the GPT-2 models at it. (Not the large ones, of course, which would overfit far too easily or hadn’t been released yet, but GPT-2-117M.) GPT-2 is unable to model raw WAV audio, or MIDI, because a meaningful musical piece is a WAV sequence of hundreds of thousands to millions of symbols long, and a MIDI piece is tens of thousands of symbols long, which far exceed GPT-2’s small context window (but see later), and why OpenAI used Sparse Transformers for its MIDI generation, as Sparse Transformers can scale to text with tens of thousands of characters. However, the high-level notation of ABC pieces means they fit just fine into the GPT-2 window.

I had avoided doing anything music with GPT-2, focusing on my poetry generation instead, because I assumed OpenAI would be doing a MuseNet followup, but months later, they’d done nothing further, and when I inquired, I got the impression that their music projects were over. So why not?

As for why repeat Sturm’s project—there were two possible advantages to using GPT-2-117M:

1. improved global coherency:

   I thought the Transformer might work particularly well on ABC format, because RNNs suffer from persistent ‘forgetting’ issues, where it’s difficult for the RNN to persist its memory of past generated sequences, making it hard for an RNN to repeat a theme with variants, while a GPT-2 Transformer has a context window of 1,024 BPEs—much longer than almost every ABC piece—and so is able to ‘see’ the entire piece simultaneously while generating the next note

2. English metadata understanding:

   The English pretraining could potentially help by providing semantic understanding of eg. the ABC metadata, such as the difference between two pieces titled a ‘jig’ versus a ‘waltz’, or the pseudo-natural-language-ness of the ABC format as a whole.

The Session

Pipeline: ABC → MIDI → WAV. So I did apt-get install abcmidi timidity¹ to get the CLI tools to do ABC → MIDI → WAV (respectively) and downloaded the folk-RNN repo with its data files.

The data comes in several formats, for their experiments in changing the notation. I used the original format, with n = 48,064 songs.

The data needed processing for GPT-2 as follows:

1. there was stray HTML (</html>) which had to be removed.

   I used search-and-replace, and reported the issue.

2. abc2midi requires every song to have an integer identifier, eg. X: 48064, to be a valid ABC file which it can compile to MIDI.

   I used an Emacs macro (which can increment an integer 1–48,064) to insert a X: $N before each T: title line, but in retrospect, I could have simply used another search-and-replace to insert X: 1 in front of each piece—it’s not like the ID has to be unique, we’re just satisfying abc2midi which is a bit picky.

3. as usual for any neural model like char-RNN or GPT-2, it is important to insert <|endoftext|> markers where relevant, so it understands how to generate separate pieces and avoids ‘run on’.

   I used search-and-replace.

This yielded 14MB of text to train on, and is converted to NPZ as usual.

First Model

Because the Session corpus was so small (just 14MB), I used the smallest available GPT-2, GPT-2-117M to train on, and standard settings to train on one of my Nvidia1080tis:

CUDA_VISIBLE_DEVICES=0 PYTHONPATH=src ./train.py --dataset thesessions-irishabc.txt.npz
    --batch_size 11 --model_name irish --save_every 4000 --sample_every 500 --learning_rate 0.0001
    --run_name irish --memory_saving_gradients --noise 0.01 --val_every 500

Straightforward success. Training was fairly easy, taking just a few days at most to train down to a loss of 0.46 (9742 steps at minibatch n = 5), and I killed it on 2019-10-21 and looked at the random samples. They struck me as pretty good, aside from generated pieces often having the same title repeatedly, which apparently was due to The Session posting multiple transcriptions of the same piece, so the model picked up on that and would generate variants on the same theme. Sturm highlighted a few and did some more in-depth commentary on them, with a mixed evaluation, concluding “So of the five transcriptions above, two are plausible. The polka is actually pretty good! All titles by GPT-2 are plagiarized, but I haven’t found much plagiarism in the tunes themselves.”

Some datasets are invalid ABC. I was worried about plagiarism and thought ~0.40 would be safe, but it seemed the music itself was still far from being copied, so I considered further training. The additional processed versions of The Session that Sturm et al had made seemed like a target, but caused problems when I simply concatenated them in, and I soon discovered why abc2midi now thought all the samples were broken:

allabcwrepeats_parsed_wot: This is version 3 of the dataset from thesession.org. In this version, we transpose all tunes to have the root C, transpose them all to have the root C#, remove the titles, and make new mode tokens, K:maj, K:min, K:dor, and K:mix. There are over 46,000 transcriptions here.

This turns out to be a problem: K:maj, K:min, K:dor, K:mix all break abc2midi! So I did additional search-and-replace to transform them into valid key signatures like K: Cmaj, K: Cmin, K: Cdor, or K: Cmix.

Balancing imitation & plagiarism. Retraining, I discovered 0.40 was far from converged, and with another 13k steps, it could go down to <0.09. However, checking random samples by hand, the textual overlap with The Session became particularly large once the loss reaches ~0.09 (note that it was not ‘overfitting’ in the standard sense, since the loss was still decreasing on the validation set), so I backed off to a model with ~0.13 loss. This seems to be high-quality without gross plagiarism.

Spaceless Model

I began using that model for the preference learning work, where I found that preference learning seemed to improve music more than the poetry, so I began focusing on the music.

Anomaly: permanent space-related syntax errors. Puzzlingly, no matter how many ratings I added, and despite the low loss, the generated samples would persistently have basic, blatant syntax errors involving spaces; abc2midi would often warn or even error out on a piece which could be easily fixed by hand by simply removing a few spaces. This was wasting my time during rating, since I couldn’t pick samples with syntax problems (even if they’d otherwise sound good) because I didn’t want to reinforce generation of invalid samples, and also while generating music.

Discussing it with Shawn Presser, who I was working with simultaneously to train GPT-2-1.5b on poetry, he pointed out that some people, like Nostalgebraist had some frustrating problems with the standard GPT-2 BPE encoding.

GPT-2 generates space-delimited word fragments. To explain what BPE is and why it might be a bad thing for ABC notation: GPT-2 doesn’t just feed in raw characters like a char-RNN does, because that makes every input extremely long. Instead, it tries to ‘chunk’ them into something in-between character-sized and word-sized, to get the best of both worlds, a way of writing text where common words are a single symbol but rare words can still be expressed as a couple symbols rather than deleted entirely like word-based encodings must; however, since the default model is trained on English text, chunking is done assuming normal English whitespace, like spaces between words.

Nostalgebraist notes that the actual BPE implementation used is weird and doesn’t act as you’d expect, especially when spaces are involved. So Presser wondered if GPT-2 couldn’t express the syntactically-correct text sans spaces, and that is why the errors were there and stubbornly persisted despite hundreds of ratings which told GPT-2 to stop doing that already.

Workaround—spaces optional! Checking, the ABC format apparently does not require spaces. They are only there for the convenience of humans reading & writing ABC. Aside from the metadata fields, if you delete all spaces, the music should be the same. I was surprised, but this seemed to be true. (Presser did some experiments with creating a brand-new BPE tailored to ABC, and while this would have reduced the BPE size of ABC pieces by >33%, I figured that all the ABC pieces fit into the GPT-2 window anyway and it wasn’t worth the hassle now that we had diagnosed & worked around the problem. He also did some experiments in generating video game style music via ABC: he prompted it with chords, and then switched from the default piano instruments/sound samples used by TiMidity++ to instruments like harps for a fantasy feel.)

So, I deleted the spaces with a simple tr -d ' ', re-encoded to NPZ, and retrained the first model to create a new ‘spaceless’ model. This required another few days to re-converge to ~0.13.

The spaceless corpus fixed the invalid-ABC problem, and the new model regularly generated ABC samples that triggered neither warnings nor errors, and Presser swore that the perceptual quality was much higher.

Combined Model: The Session + ABCnotation.com

More dakka (data). Presser was interested in expanding the repertoire beyond The Session and began looking at ABC databases. The biggest by far appeared to be ABCnotation.com, which had n = 290,000 pieces. He scraped a random half of them, for n = 157,240 total, and I combined them with The Session duplicated dataset, for a total n = 308,280 (n = 205,304 unique; 81MB).

Simplifying to match The Session ABC. ABCnotation.com pieces are much more diverse in formatting & metadata than The Session. To homogenize them, I ran all the pieces through abc2abc, and then I deleted some metadata fields that struck me as excessive—commentary, discussions about how to play a piece, sources, authors of the transcription, that sort of thing, which greatly inflated the loss of the combined dataset compared to the spaceless model. (In total, I filtered out abc2abc-generated warnings starting with %, and B:/D:/F:/N:/O:/S:/Z:/w: metadata.) It would have been nice if the metadata had included genre tags for greater control of conditional pieces, akin to my author-based control for GPT-2 or char-RNN poetry, a technique demonstrated at scale by CTRL using explicit Reddit metadata, and Choi et al 2019 using autoencoders to do unsupervised learning of musical features which implicitly covers genre, but alas! We’ll have to stick with the basics like title/key/meter.

This required a full week of training or 168810 steps (1–7 Dec), down to a higher loss (as expected) but still on the edge of plagiarism:

• final GPT-2-117m model trained on the combined dataset

• dataset (GPT-2-formatted spaceless The Session + ABCnotation.com scrape + GPT-2-formatted spaceless combined dataset)

Examples of generated ABC (note the lack of spaces):

X:1
T:AlongtheMourneShore
M:3/4
L:1/8
K:G
DGA|"G"B3AG2|"Bm"(dB3)AB|"Em"(BG)(AG)GD|"C"E3G(3(EDC)|
"G"D3GB2|"Bm"D3GB2|"Em"(dc3)(BG)|"D7"B3(DGA)|!
"G"B3AG2|"Bm"(dB3)AB|"Em"(BG)(AG)GD|"C"E3G(ED/C/)|
"G"D3GB2|"Bm"D3GB2|"C"c3/d/"D7"BA(GF)|"G"G3:|!

X:1
T:ElChestrinDimmelsack-PolkaCF(pk07594)
T:HannyChristen.Bd.VBaselII,Jura.S.21(pk07594)orig.C,F
R:Polka
M:2/4
L:1/16
K:C
"C"GEcGecGE|"G7"FAdAf2d2|BdgdfdBG|"C"ceGecAGE|GEcGecGE|"Dm"FAcfAdAF|"C"EGce"G7"gfdf|"C"e2c2c2z2:|
"G7"GBdfedcB|"C"cegc'a2ge|"G7"f2dBG2ef|"C"gecGE2cc|"G7"GBdfedcB|"C"cegc'a2ge|"G7"f2dBG2ed|"C"c2e2c2z2:|
K:F
|:"F"aca2fac2|"C7"Bgg2G3F|EGcegbeg|"F"facfAcFA|caA2caG2|FAcfabc'a|
"C7"bgec=Bcde|1"F"f2agf2z2:|2"F"

X:6
T:PolkaEbBbAb(5letras)cf.CGF5-Parts
P:ABAC
M:2/4
L:1/16
K:EbmFisch
[P:A]"Eb"B2BGe2eB|"Ab"c2cAF3E|"Bb7"DB=A^CD2D2|"Eb"EedcB4|B2BGe2eB|
"Ab"c2cAF3E|"Bb7"DB=A^CD2D2|"Eb"E4z2"_fine"z2||[P:B][K:Bbmaj]"Bb"d4f4|f2edc2B2|
"F7"cdcBA2A2|"Bb"cdBAG4|"Eb"d4f4|f2edcdcB|
"F7"cdcBA4|"Bb"B2B2B2B2||[P:C][K:Abmaj]"Ab"EACAE2c2|c3BA3B|
"Eb7"GeGeG2d2|d3c=BGFE|"Ab"ACEAE2c2|c3BA2B2|
"Eb7"GeGfGgBa|"Ab"aaa2a2z2||[P:D][K:Ebmaj]"Bb7"AGFdc3=B|"Eb"BeGBe4|"Bb7"B2BF"Eb"G2E2|"Bb7"FGABc4|
"Bb7"AGFdc3=B|"Eb"BeGBe4|"Bb7"B2B2e3d|"Eb"e3cBcBA|"Ab"AAAAA2e2|]

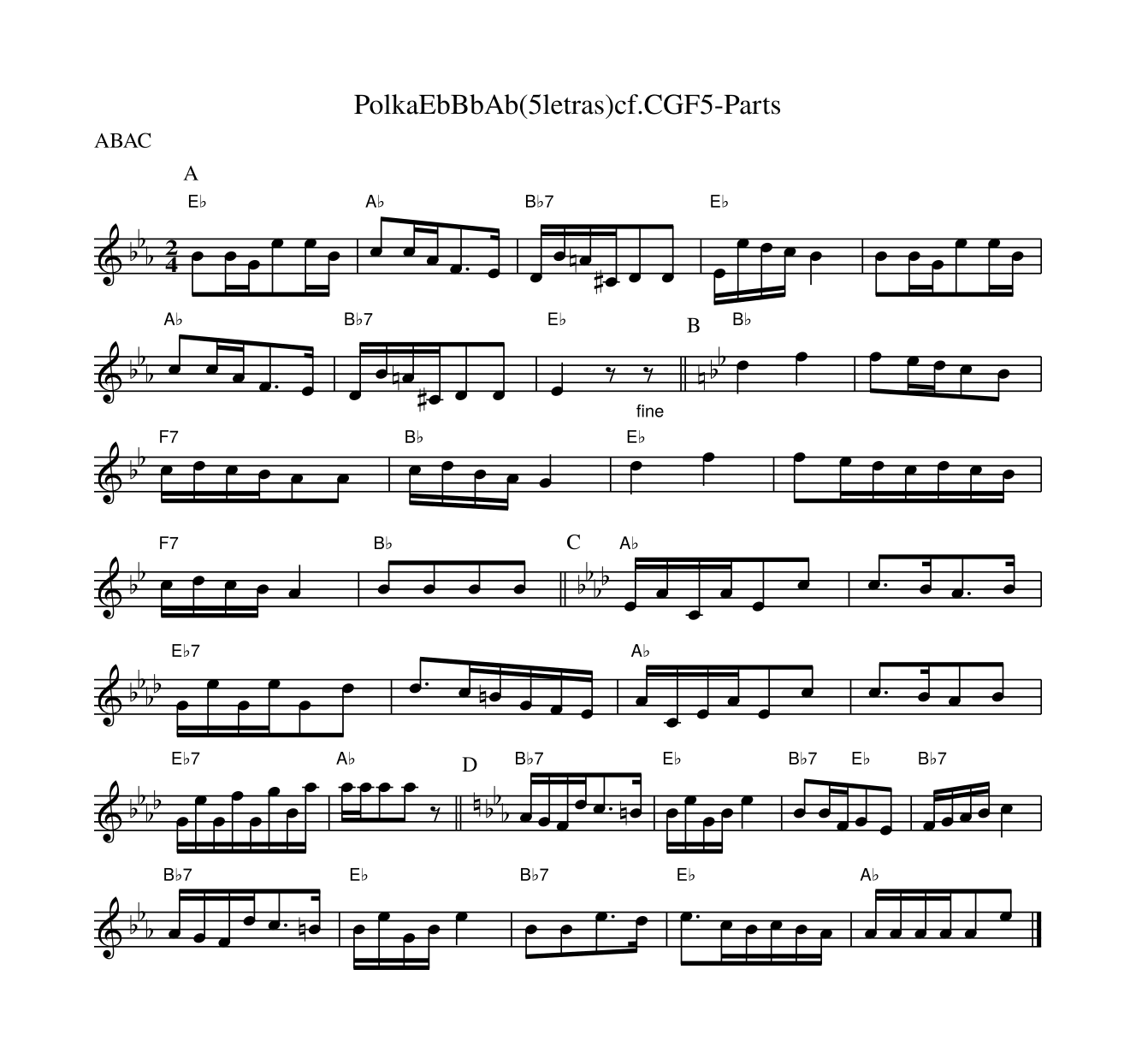

Last example rendered as a score:

Converting MIDI to ABC

Need compact text versions of MIDIs. The problem with raw MIDI files is that they are binary, and not textual. The codebase does not support binary inputs as far as we know, and in any case, text is always much easier to inspect and work with. There are textual formats for MIDI, like hex encoding, and one can use generic binary → text encodings like Base64, but I was not too satisfied with them: when I tried them, they often blew up the character count greatly, and even 30k context would not be enough.

ABC works well enough. Ironically, ABC turns out to be the answer! The ABC tools ship with midi2abc, which is the inverse of abc2midi, and while it warns that it is a lossy translator, after listening to a few dozen, I had to say that it does a good job overall. It also generates ABC files which are similar in size to the original MIDI files. (I think that whatever midi2abc loses in having to potentially laboriously encode MIDI constructs, it makes up in being able to take shortcuts using ABC’s higher-level music constructs.) The weaknesses of midi2abc is that it: loses volume control, doesn’t work well on some rock tracks (drums/guitars are hollowed out), doesn’t successfully compile many MIDI files (leaving empty or extremely short ABC files), and there are occasional pathological examples (eg. one 44kb MIDI decompiled to a 3.4GB ABC file—some exponential blowup?). However, the first two are relatively minor, and the third can be tamed by simply dropping ABC output past 300kb (as hardly any non-pathological MIDI files compiled to >300kb).

Data cleaning. In converting the files, we want to avoid excessive use of newlines (-bpol 999999), we want to delete various warnings or error lines, we want to filter comments starting with '^% '—which take up a ton of space and often are just lyrics—and then delete spaces in non-MIDI-directive (^%%) lines per the ‘spaceless’ model above. The shell pipeline:

## delete odd trash files in LMD/Composing.ai
find . -type f -name '\._*' -delete
## clean up conversions from any previous runs
find . -type f -name "*.mid.abc" -delete

function convertMidi2Abc() { midi2abc -bpl 999999 -nogr "$@" |  \
 grep -E -v -e '^% ' -e '^w:' -e 'Missing time signature meta' \
          -e 'All rights reserved' -e 'Error ' -e 'Copyright' | \
 ## ABC MIDI commands start with '%%', but regular comments start with '%', so drop any line with '%' but not '%%' in it:
 sed -e 's/^%[^%].*//g' | \
 ## delete spaces inside non-MIDI commands (MIDI, but not ABC, commands are space-sensitive):
 sed -e '/^%%/! s/ //g' | \
 ## a handful of files are pathological, so truncate:
 head --bytes=300000 > "$@".abc; }
export -f convertMidi2Abc
find . -type f -name "*.mid" | parallel convertMidi2Abc

## below 150 characters means an ABC file probably contains only metadata
find . -type f -name "*.abc" -size -150c -delete

## create training (19/20) and validation (1/20) file lists:
find . -type f -name "*.mid.abc" | shuf > filelist.txt
split -n l/20  filelist.txt split

The file-lists can be used to read in individual files, intersperse <|endoftext|>\n, and write them out as a single GPT-2-formatted text. A shell loop proved too slow so I wrote a simple Haskell script:

{-# LANGUAGE OverloadedStrings #-}
import Data.ByteString as B (concat, readFile, writeFile)
import Control.Monad (liftM)
import Data.List (intersperse)
main = do files <- liftM lines $ Prelude.readFile "training.txt" # 'splitaa'
          contents <- mapM B.readFile files
          let contents' = Data.List.intersperse "<|endoftext|>\n" contents
          B.writeFile "foo" (B.concat contents')

5.2GB of ABCs. The final results were 453,651 ABC files (~10k BPE/ABC?):

1. 2020-03-30-abc-combinedmidi-training.txt: 4.9GB (430,928 ABC pieces)

2. 2020-03-30-abc-combinedmidi-validation.txt: 263MB (22,723 ABC pieces)

A sample of 50 randomly-chosen (excluding The Sessions) human-written MIDI files:

The full dataset (all MIDIs, ABCs, file-lists, and GPT-2-formatted text files) is available for download:

rsync -v rsync://176.9.41.242:873/biggan/2020-03-30-mididataset-abcnotation-thesessions-lmd_full-popmididatasetismir.tar.xz ./

GPT-2-30k Download

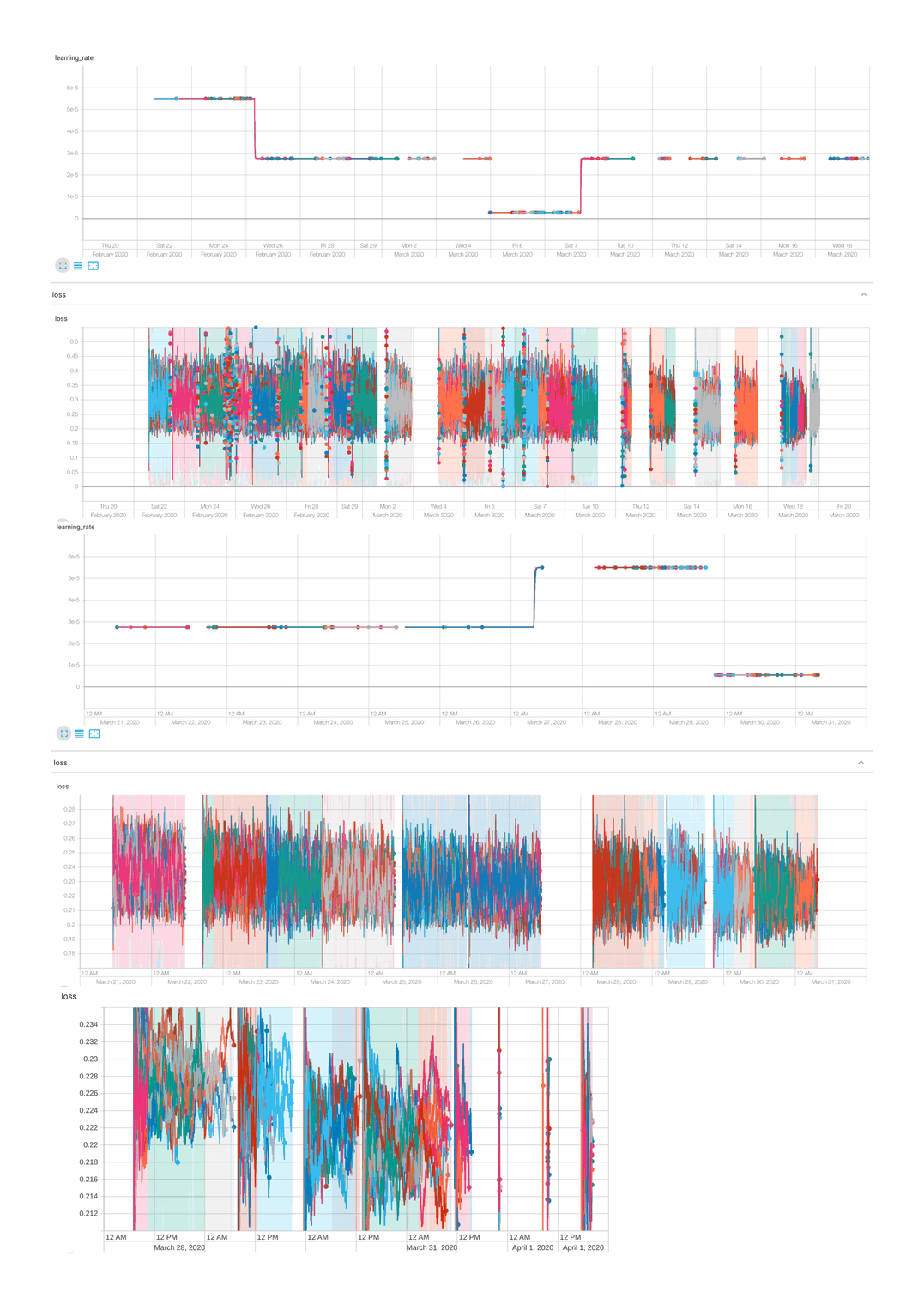

The final model was trained for 30,588,051 steps, and is available for download:

1. Rsync mirror: rsync -v rsync://176.9.41.242:873/biggan/2020-04-12-gwern-gpt-2-117m-midi-30588051.tar.xz ./ (475M)

2. Mega
